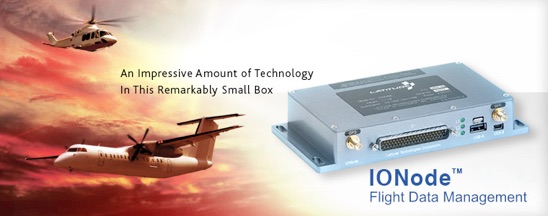

The IONode™ lightweight flight data recorder will help you improve aircraft operating efficiencies, reduce maintenance costs, increase safety, and help grow your fleet’s bottom line.

STANDARDS and CERTIFICATIONS

1. •RTCA DO-160F Environmental Qualification


2. •EUROCAE ED-155, chapter III for Aircraft Data Recording Systems


3. •STCs available for FAR Part 23, 25, 27, 29 aircraft


PHYSICAL INTERFACES

1. •Dimensions: 6.7 in (w) x 3.5 in (l) x 1.2 in (h)


2. •Weight: 1.1 lbs.


3. •Input power: 9 VDC to 32 VDC. (0.5 A @ 28 VDC)


4. •24 – analog/discrete configurable I/O


5. •2 – Arinc-429


6. •1 – Arinc-717


7. •3 – RS-232


8. •1 – RS-485


9. •2 – USB 2.0 (1 host, 1 slave)


10. •GPS: 1575 MHz


11. •Wi-Fi: 802.11


SOFTWARE/NETWORK INTERFACES

1. •IONode BaseStation™ and Latitude Flight Data Analytics


2. •Selected 3rd party flight data analytics programs


The IONode™ lightweight flight data recorder will help you improve aircraft operating TYPICAL PARAMETERS

1. •GPS location, altitude, speed, heading, UTC time


2. •Barometric altitude and air speed, OAT, relative humidity


3. •Flaps, air brakes, angle of attack, landing gear, WoW


4. •Bank angle, aircraft attitude, attitude acceleration


5. •Engine parameters: Torque, pressure, temperature, RPM


6. •Fuel level, fuel flow


7. •Structural strain/vibration gauges


8. •Tanker load, load cell


9. •Analog voltage, current


10. •Door position, trigger signals


RECORDED PARAMETER OPERATIONAL RANGE

1. •GPS Altitude: -1,000 ft to 60,000 ft


2. •GPS Speed:  0 Kt to 971 Kt


3. •X/Y/Z Acceleration: +/-16g


RECORDED PARAMETER RESOLUTION/ACCURACY

1. •GPS Horizontal (Lat/Long): 1.6×10^-5 deg / 2.5m CEP


2. •GPS Altitude: 1m / 2.0m VEP


3. •GPS Ground Speed:  0.06 Kt / 3 Kt


4. •GPS Heading: 0.35 deg / <0.1 deg


5. •Roll/Pitch Attitude: <0.05 deg / <0.5 deg *


6. •Yaw Attitude (Heading): <0.05 deg / <2 deg *


7. •Roll/Pitch Rate: <0.05 deg / <0.01 deg/s


8. •Yaw Rate: < 0.01 deg/s **


9. •X/Y Acceleration: <0.4 mg **


10. •Z Acceleration: <1 mg **


11. •Pitot Port: 0.0006 in Hg / <0.03 in Hg


12. •Static Port: 0.0018 in Hg / <0.08 in Hg


13. •Analog inputs: <0.007 V / 3 %


* Requires initial setup to achieve indicated accuracies
** Accuracies depend on installation environment and calibration

For more information on the IONode™ or to place an order, please contact us at info@centurionaero.com, reduce maintenance costs, increase safety, and help grow your fleet’s bottom line.
