Superiority in GLOBAL Voice & Data communications for the Aviation Industry.

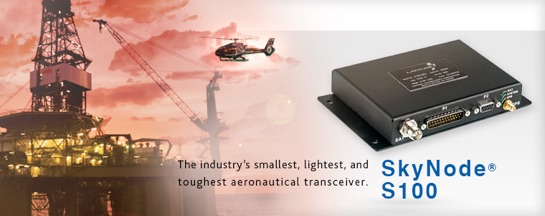

The SkyNode® S100 offers complete tracking and data telemetry. Interfaces to     multiple mapping and information management systems. 2-way data access    everywhere you operate. The preferred real-time data communications module for    Latitude’s IONode FDM system.

SYSTEM FEATURES

• Reliable 2-way data networking/messaging
• Remotely configurable
• Data logging and event triggers from external switches/buttons
• Internal fast-fix 20 channel WAAS GPS receiver
• Auxiliary GPS serial data output for moving map, electronic flight bag and 406 ELTs
• OOOI flight schedule reporting
• Internal G-switch for automatic anomaly reporting
• Flight data logging
• Meets forestry AFF live tracking requirements
• Auxiliary backup battery option
• Latitude IONode FDM compatible


ELECTRICAL, DATA, AND RF INTERFACES

• Power input voltage: 9-36 VDC (with reverse and over-voltage and over-current protection)
• Current: 0.16 A nominal, @ 28 vdc, 0.50 A max during transmit
• Serial data ports for laptop/messaging terminal
• Bluetooth/Wi-Fi capable for messaging with Blackberry, Android, iPad and other PDAs
• 2 serial data ports, 7 discrete inputs, 3 analog inputs, 1 discrete output

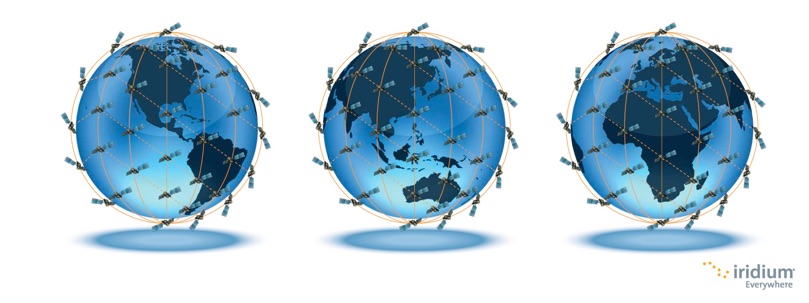

• Antenna options: Individual GPS and Iridium antennae, or dual element GPS/Iridium antenna

PHYSICAL SPECIFICATIONS

• Size: 6.80” x 4.00” x 1.10” (17.3 x 10.2 x 2.8 cm)
• Weight: 0.94 lbs (426 g)

ENVIRONMENTAL QUALIFICATIONS

• Operating temperature range: -40 to +60 C
• Altitude: 50,000 ft
• DO-160E Env. Cat.A4-BAB [(SM)(U2F)] XXXXXXZBBXXXBXXXXX

APPROVALS

FAA, TCCA and EASA STC’s are available for over 900 different helicopters and fixed-wing aircraft


For more information on the SkyNode S100 or to place an order, please contact us at info@centurionaero.com
